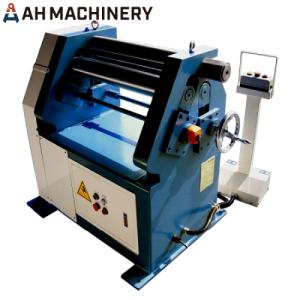

Power 3-Rolls Bending Machines For (Single Pinch)

AH Machinery supplies full range of Power Roll Bending Machine, Plate Bending Rolls, Metal Plate Rolls made in Taiwan, customized specifications are available.

/APPLICATIONS/
Aerospace, aviation repair, automobile refit, home appliance, military industry, pressure vessel, ship, wind power and so on.

/SPECIFICATION/
- Type= Power
- Pinch= Single
- For= Light / Medium Duty
- Roll= 3
- Diameter of Top Shaft [mm]= 75, 100, 110, 120
- Main Motor [HP/KW]= 1/0.7, 3/2.2, 5/3.7
- Capacity [mm]= 1.6x1270, 2.5x1550, 3.2x1270, 4.0x1550, 4.5x1270
- Weight [Kgs/Lbs]= 800/1764, 900/1984, 1050/2315, 1050/2315, 1250/2756, 1400/3086, 1500/3307
- Overall Dimensions [mm] [LxWxH]= 1700x650x1150, 1950x750x1150, 1950x750x1150, 2050x850x1040, 2250x750x1150, 2750x800x1200

/STANDARD ACCESSORIES/
v Motor & Control Box
v Hardened Rolls
v Movable Control Panel with Foot Switch
v Position Indicator

/ADVANTAGE/
v Rolls driven by motorized.
v Wire grooves are standard.
v Bending capacity is between 1.6 - 4.5 mm thickness.
v The machine body, frame and steel bar connections are all stress relieved after the welding operation.
v All transmission is built into one side .thus,it is easy to swing out the upper roll for workpiece removal.
v The design with three rolls mounted independently enables high productivity and easy adjustment of the rolls.
v The whole body is machined with CNC Five Faces Machining Center, utilizing a fixed single reference point. This allows for parallelism of all axes and precise surfaces, as well as longevity and precision critical characteristics of the machine.
